Surge Protection and How it Works


If you own a computer or other electronic equipment, you probably own a surge protector. Most surge protector designs serve an immediately obvious function, which is basically allowing you to plug various components into a single power outlet. But, there is much more to it than that.

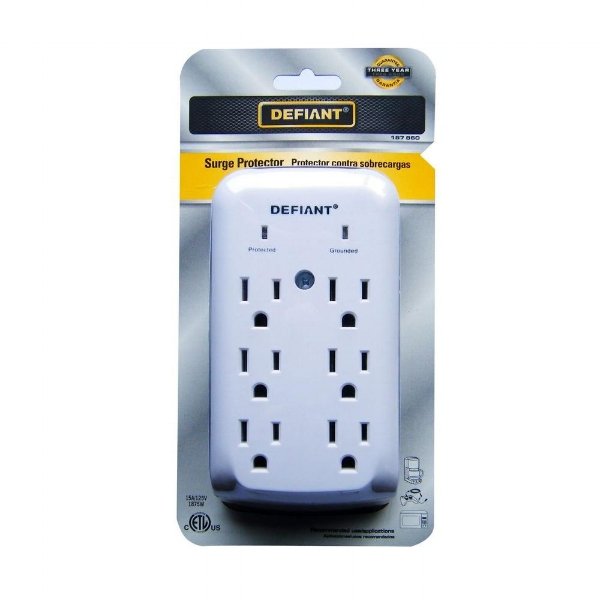

The best kind of surge protection often involves 'layers' of protection, from a power strip like this one to a whole house surge protector.

The best kind of surge protection often involves 'layers' of protection, from a power strip like this one to a whole house surge protector.


Surge protectors provide protection to electronics from surges in power. A power surge, which is also called transient voltage, is basically an increase in voltage that’s above the normal level of electricity flow. Typically, in normal office and household wiring in the US, the standard voltage is actually 120V. If it’s above 120V, that’s a surge and surge protectors help in preventing that problem from destroying delicate electronics.

To understand more about this, it’s wise to know something about voltage. It’s a measure of the difference in the electric potential energy. An electric current travels from point to point as there’s a greater electric potential energy on the originating wire’s end than on its other  (outlet) end. It’s the same kind of principle which urges the water under pressure to flow out of the hose: a higher pressure on the hose’s end pushes water toward a place of lower pressure. You may think of the voltage as the measure of the electric pressure.

Once the surge is high enough, it may inflict a heavy damage on electronics and even wiring. The effect is actually similar to applying water pressure to the hose. If there is too water pressure, the hose will burst. In the same way, when too much electricity runs through wire, it heats up like a filament in the light bulb and start to burn. Even though increased voltage may not break your electronic immediately, it can put extra strain on it, and weaken components.

People often buy surge protectors for other kinds of wiring connections such as those for telephone and cable tv wiring.

People often buy surge protectors for other kinds of wiring connections such as those for telephone and cable tv wiring.

A typical surge protector passes current along from an outlet to several electronic and electrical devices that are plugged into the power strip. Once the voltage from an outlet surges, the surge protectors divert extra electricity into the grounding wire of an outlet. In a common surge protector, there’s a component known as MOV or metal oxide varistor, which diverts extra voltage and prevents damage to the electronic.

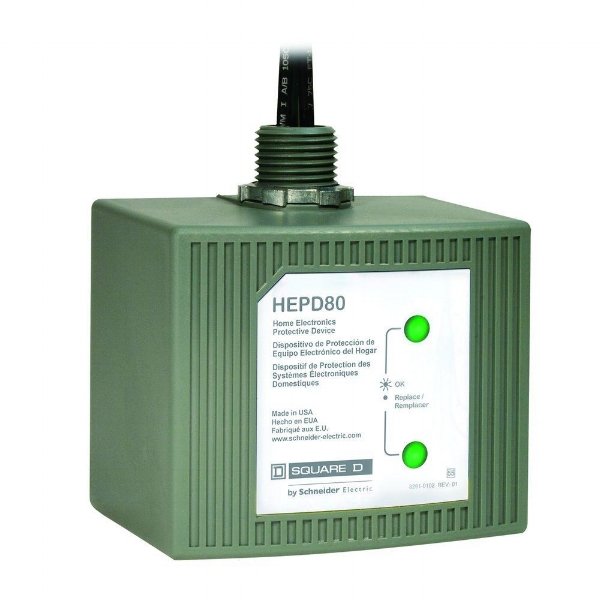

For this reason, using a surge protector for delicate electronics is well worth the money. If a homeowner finds they have more electronics and a greater vested interest in protecting them, or the home is located in an area with frequent power surges,  a whole house surge protector can not only protect electronics, but also the wiring of a home.

When a home has a large appliance, such as an HVAC, which causes surges inside the home wiring system, these are also a threat to electronics. However, a whole house surge protector can divest the surge before it is allowed to ramp the surge into other circuits.

No matter how great your surge protection is, if lightening strikes your house, all bets are off.

No matter how great your surge protection is, if lightening strikes your house, all bets are off.

In addition, you can get surge protectors specifically designed for phone and cable lines. Just as everyone’s homes and electronic devices are different, do their need for surge protection will be different, but, ultimately, the more ‘layers’ of surge protection between a surge and your devices, the less likely they are to become damaged or destroyed.
